Visualize and Troubleshoot Wi-Fi Interference with Chanalyzer 5
Chanalyzer 5 turns RF spectrum data collected from Wi-Spy or a Cisco CleanAir-enabled access point (with accessory purchase) into highly interactive charts and graphs, allowing you to visualize your wireless landscape. Chanalyzer displays wireless access points and other transmitters as they appear in the spectrum, giving quick insight into whether interference is Wi-Fi or non-Wi-Fi related.
Note: The features and abilities of Chanalyzer depend on which data source you are using. When connected to a CleanAir® AP, Wi-Fi data will be unavailable. If using Chanalyzer in Wi-Spy mode from within a virtual machine, an additional USB Wi-Fi adapter is required to gather network data.
System Requirements
OPERATING SYSTEM: Microsoft® Windows 7, 8, and 10
macOS VIRTUALIZATION: VMware Fusion, Parallels
Note: Virtual Machines require an external USB Wi-Fi adapter to view Wi-Fi information.
DISPLAY RESOLUTION: 1024x768 (or better)
FRAMEWORK: .NET Framework 4.8
USB PORT: 1.1 (or better)
RAM: 4 GB (recommended)
MetaGeek Wi-Spy Mode
HARDWARE: Wi-Spy 2.4x or Wi-Spy DBx and Built-in Wi-Fi card (802.11a/b/g/n recommended, b/g/n compatible)
Cisco CleanAir Mode (Requires Cisco CleanAir Accessory)
HARDWARE: Cisco CleanAir-enabled Access Point (for remote troubleshooting)
SUPPORTED: Cisco Aironet 1500, 2600, 3500, 3600, and 3700 series
Installation
1 - Download Chanalyzer
http://www.metageek.net/support/downloads/
2 - Run the installer
Locate the installation file and run it. Follow the installer prompts.
3 - Run Chanalyzer
In Windows 7, click the Start button, click All Programs > MetaGeek > Chanalyzer.
In Windows 8, press the Windows key on the keyboard, type Chanalyzer, and press Enter or click on the icon.
Cisco CleanAir Mode
Connect to a Cisco Access Point (Requires Cisco CleanAir Accessory)
The three different operating modes of a Cisco CleanAir access point determine which types of data are available to Chanalyzer.
Local - Each Cisco CleanAir-enabled access point radio provides air quality and interference detection reports for the current operating channel only. Local mode does not disrupt client connections. When a hybrid-REAP access point is connected to the controller, its Cisco CleanAir functionality is identical to local mode.
Monitor - When Cisco CleanAir is enabled in monitor mode, the access point provides air quality and interference detection reports for all monitored channels. Monitor mode allows the AP to share spectrum analysis dwells for collection of Wi-Fi data.
SE-Connect - This mode enables a user to connect Chanalyzer running on an external PC to a Cisco CleanAir-enabled access point in order to display and analyze detailed spectrum data for all Wi-Fi channels on a radio. In this mode, an access point is used strictly as a spectrum analysis capture interface and does not provide any Wi-Fi, RF, or spectrum data to the controller.
There are two options for connect to a CleanAir Access Point using Chanalyzer:

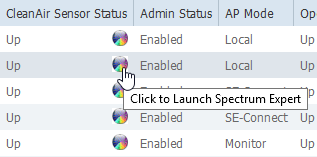

CCF File - From the Cisco Prime administration page you can download a .ccf file that contains details about an access point, such as the NSI key. Use Chanalyzer to open the file and start capturing spectrum data.

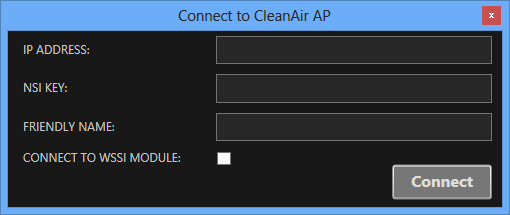

Chanalyzer Direct Connect - Within Chanalyzer, use the CleanAir menu to select Connect to a CleanAir AP. You will need to enter the IP address and NSI Key, and you can assign it a friendly name. If the AP has a WSSI monitor module, select the checkbox.
Chanalyzer will keep a list of your recent connections so you can quickly toggle between multiple APs.
Wi-Spy Mode: Choose a Wireless Network Interface Card (NIC)

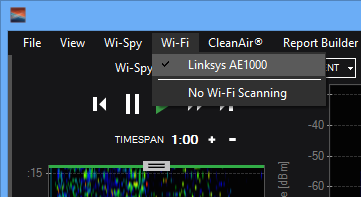

Select a built-in or connected wireless network card in the main menu to access additional WLAN information about SSIDs, RSSI, MAC address and data rate. Click Wi-Fi in the menu bar, and then click the name of your wireless network card to collect Wi-Fi data in conjunction with the spectrum data.
Note: Wi-Spy is a spectrum analyzer. It is not capable of reading at the Wi-Fi packet layer. Therefore Wi-Spy will not appear in the Wi-Fi card drop-down list. Due to the way macOS handles Wi-Fi, if you are running Chanalyzer in a VM, you will need an additional USB Wi-Fi adapter to collect network information.
Occasionally a wireless network card will actively perform probe requests on all Wi-Fi channels, creating noise across the entire band with power levels above -40dBm. This background activity can often skew the results of a spectrum analysis site survey. If you notice this behavior with your wireless network card and don't want the additional noise in your recording, we recommend that you select No Wi-Fi Scanning.
See Wi-Fi Channel Labels in the Density View

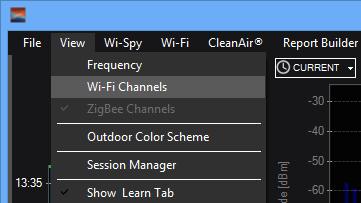

In the main menu select View > Wi-Fi Channels. This will change the x-axis to display the Wi-Fi channels instead of the corresponding spectrum frequencies.

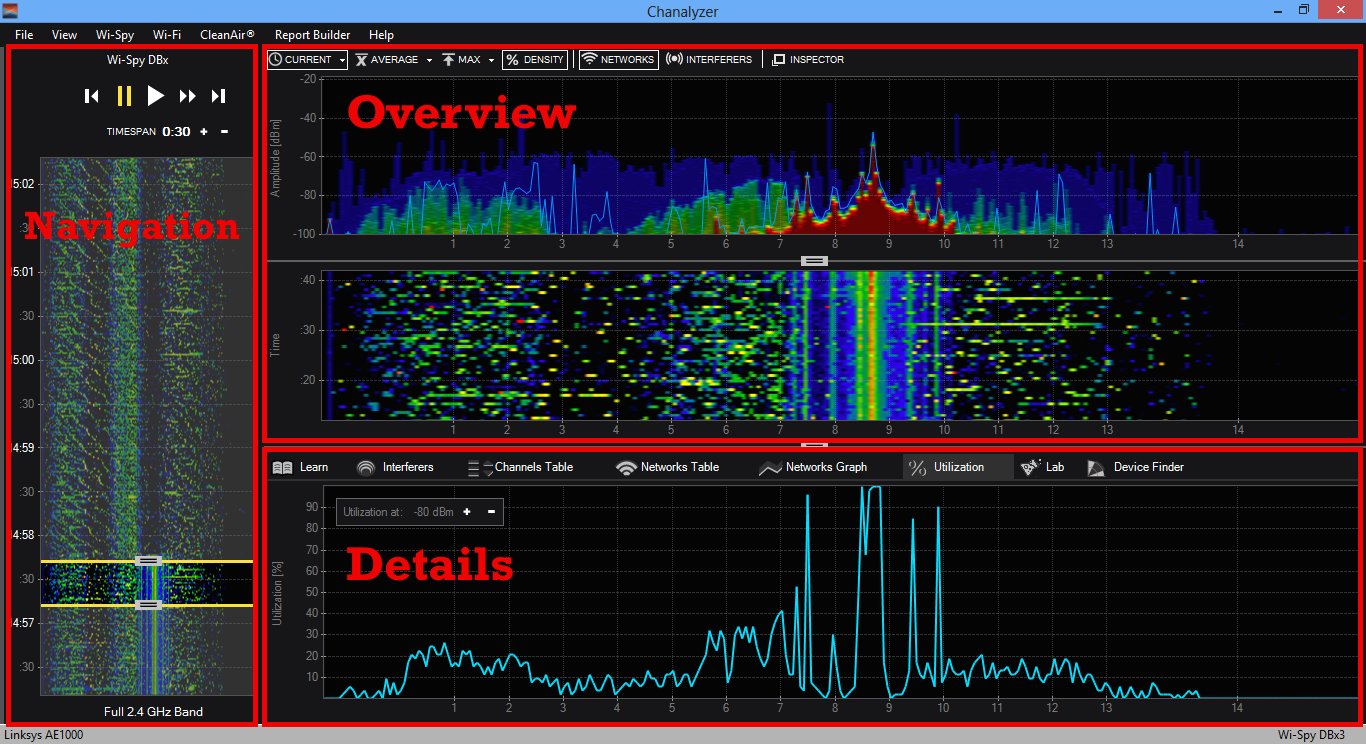

Application Window Details
Navigation Pane
The Navigation Pane provides controls for browsing Wi-Spy/Wi-Fi recording sessions. Within the Navigation Pane, you'll find:
Device Selector (Wi-Spy Mode)
Chanalyzer continuously logs data from multiple sources when connected to your computer. To change which band you’re currently analyzing and recording, select an option from the Wi-Spy menu.
Session Navigator (Wi-Spy Mode)
Each time a user selects a new frequency range in the Wi-Spy menu, the previous data is saved as a session in a Wi-Spy Recording. Active sessions are indicated with a red record icon, meaning there is currently data being added to the session. The session currently being displayed in Chanalyzer, whether it is active or not, will have a green box around it.

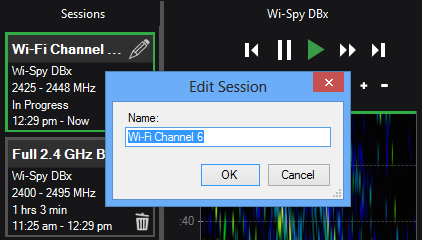

Renaming a Session
Sessions can be renamed to represent various points in a recording. This feature is primarily used to identify locations however it can also be used to identify smaller frequency ranges. It’s handy to rename sessions to help you navigate through several surveys.
Timespan Controls
The Timespan controls adjust the length of time users see in the Overview and Details panes. Timespan adjustments allow users to narrow in on anomalies and moments in time when WLAN performance suffered. The playback buttons are used to Play, Pause, Rewind, and Fast Forward while viewing a capture. The playback controls can also aid in selecting smaller time spans in the waterfall navigation.
Waterfall Navigation
Waterfall Navigation colorfully displays all data in the current Wi-Spy session to show the section of time detailed in the Overview and Details panes.
To move to a specific position within the session, double-click a point within the waterfall. You can also click and drag the head and tail of the highlight slider region to easily adjust the timespan in the Waterfall Navigation.

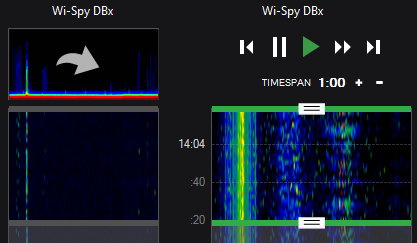

If two Wi-Spy devices are connected, two waterfall views are visible. To swap the active band, click the arrow in the inactive band’s thumbnail.
Overview Pane
This pane, located at the top right of the Navigation pane, contains the Waterfall and Density views.
Density View
The Density View displays how often a signal is detected at a specific amplitude. After a short time of gathering data, patterns begin to emerge in the Density View. A density map view enables the user to quickly identify packet-based and analog patterns that may be interfering with your network.
Display Options
The Density View has several view options. All of the display options can be toggled on and off as needed, and the trace colors customized. Users can employ combinations of these options to troubleshoot more efficiently.

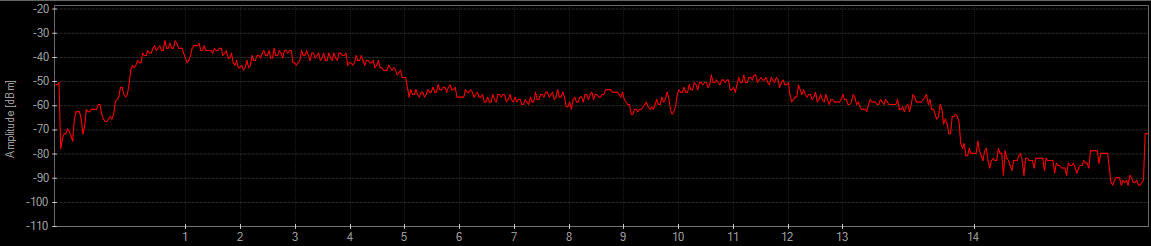

Current

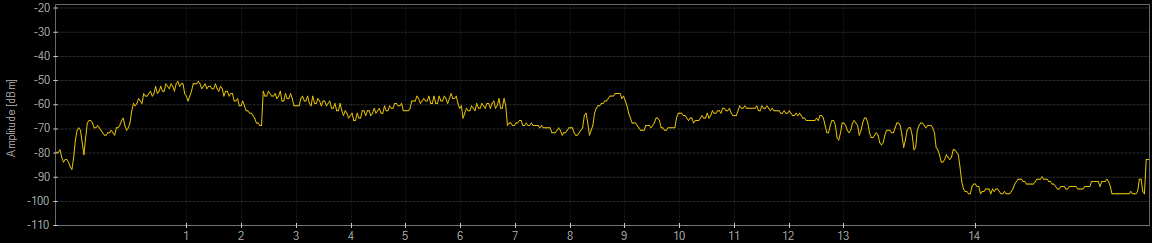

The current display option represents the received values at the most recent reading in the time span. By default this will be real-time unless the user has changed the time span settings to previously captured data.
Average

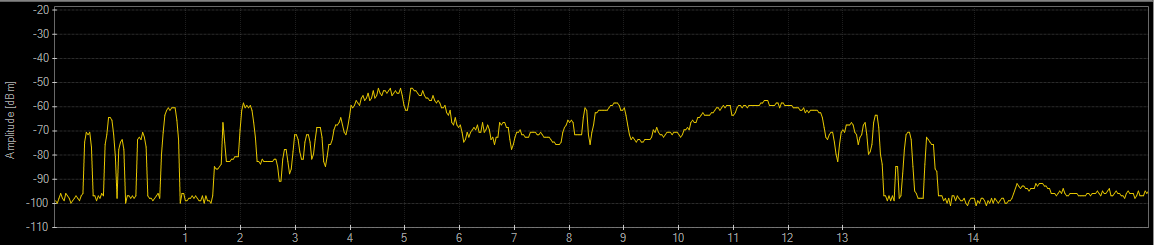

The average display option represents the average of the received spectrum activity in the selected time span. For example, if the time span is 1 minute, the average will be calculated in the rolling 1 minute.
Max
The maximum display option represents the maximum values received from the Wi-Spy across the band in the selected time span.
Density

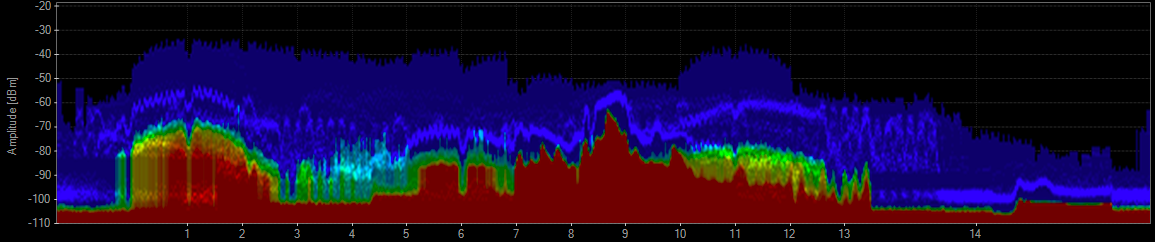

This view emphasizes how constant noise is across the spectrum. At any given point, Chanalyzer assigns a color based on how much of the energy in a range of time is above that point. If 50% of all the activity is above an amplitude point, Chanalyzer colors it red. This display option is especially useful in understanding just how constant interference is within a given range of time.

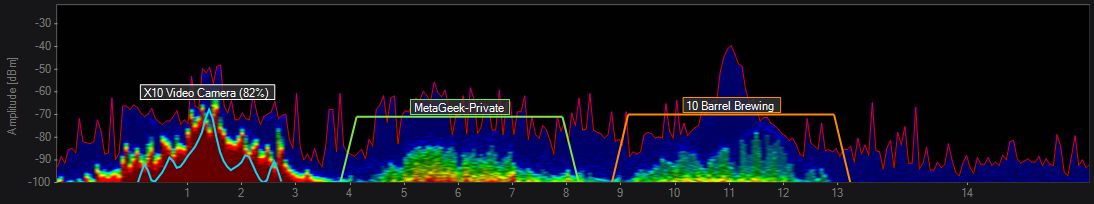

Networks (Wi-Spy Mode)

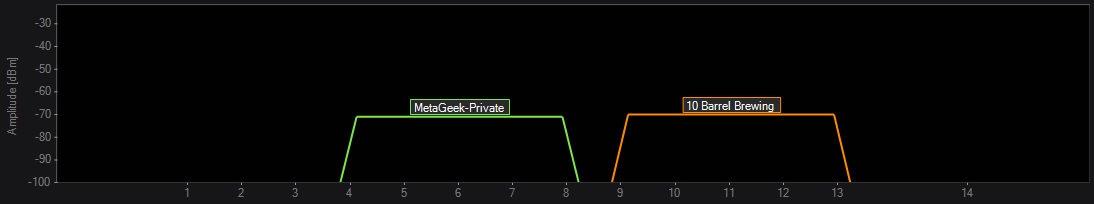

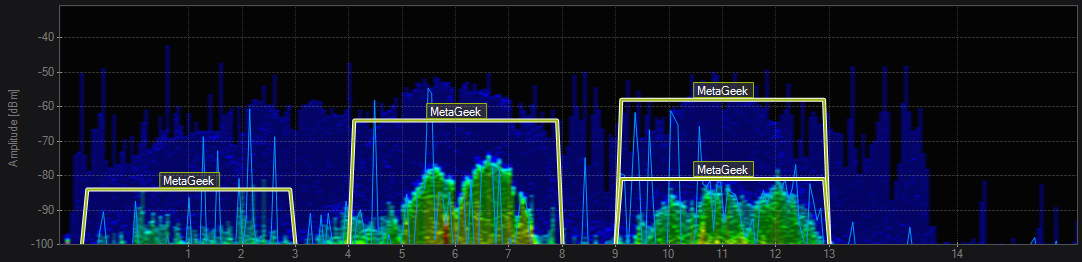

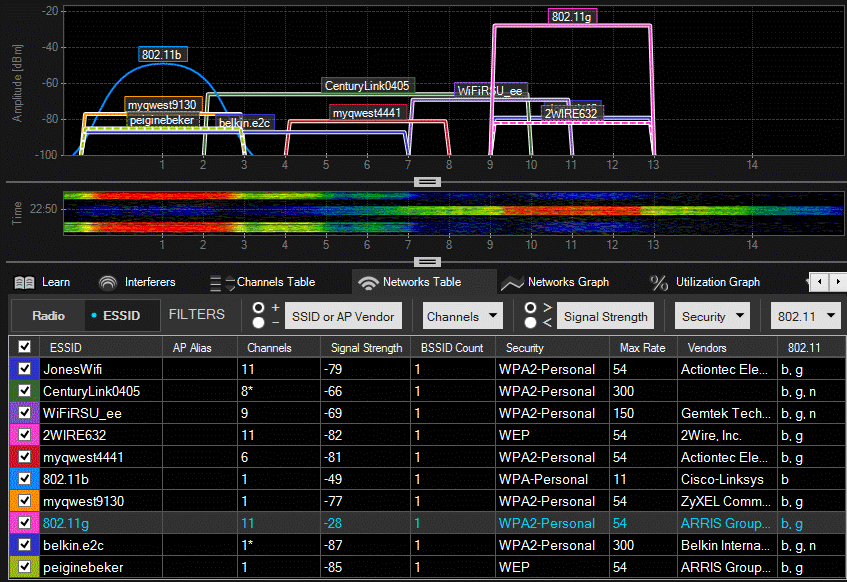

By selecting SSIDs in the Networks Table, Chanalyzer will draw overlays in the density view to help the user interpret which ones may be experiencing the most congestion.
CleanAir Mode: When connected to a CleanAir AP, Chanalyzer will draw overlays around the channels that an interfering device is affecting. Simply check the box in the “Interfering Devices” tab next to the devices you are interested in.
Inspector

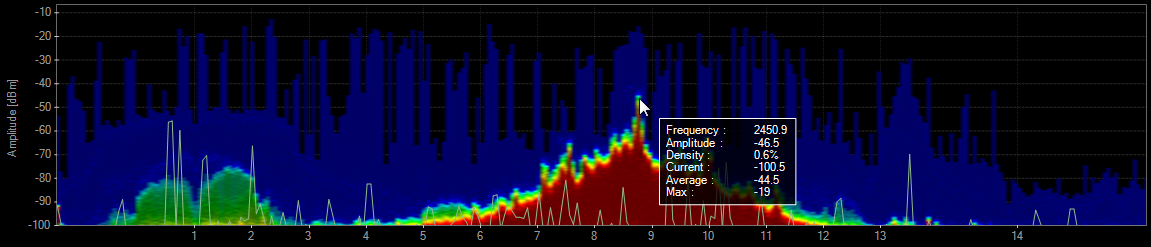

This creates a hovering box above the cursor that displays specific numbers regarding a particular frequency amplitude point.
Waterfall View

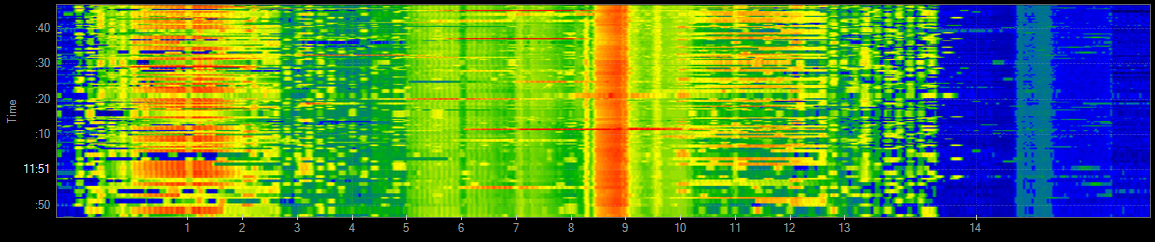

This view graphs amplitude over time for each frequency in the selected ISM band. The Waterfall View uses a color scale to represent amplitude levels – low levels are dark blue, while high amplitudes are bright red. This emphasizes instances where wireless devices like cordless phones or microwaves may have changed the spectrum. For example, when a microwave is turned on or a cordless phone changes channels, it is very noticeable in the Waterfall View.
Details Pane (Wi-Spy Mode)
The details pane contains a number of tabs with more in-depth information about Wi-Fi networks and their channels. You can quickly alternate between tabs by pressing CTRL + TAB.
Note: The Lab tab is only available if the Lab Accessory for Chanalyzer has been included or added to your base Chanalyzer license. It can be purchased and added at any time.
Networks Table (Wi-Spy Mode)
The Networks Table is a list of all the Wi-Fi access points that are within range of your computer’s Wi-Fi card.
The names (or SSIDs) of access points (APs) are displayed, along with signal strength (RSSI), channel, MAC address and other identifiers. This table provides a snapshot of Wi-Fi networks in the area, and helps correlate RF activity in the spectrum views to known Wi-Fi networks.
To see a network drawn in the Density View or Networks Graph, click the checkbox next to its name.
ESSID and Radio Grouping
Select the Radio button to group virtual SSID's per radio together, or select the ESSID button to group access points with the same SSID together in the Networks Table.
Each group is represented by one line item in the Networks Table.
ESSID Grouping

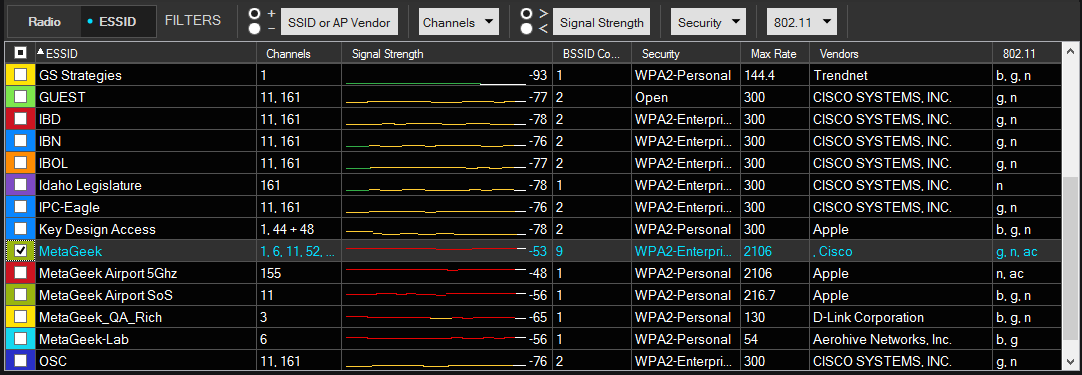

An ESSID refers to a group of unique access points with the same SSID, typically spread out across a building or campus.
Each line in the ESSID column is a group of access points with the same SSID. The channels table indicates which channels the ESS occupies, and the BSSID Count column shows the number of SSID's in the group.
Note: One ESS group can contain both 2.4 and 5 GHz SSID's.

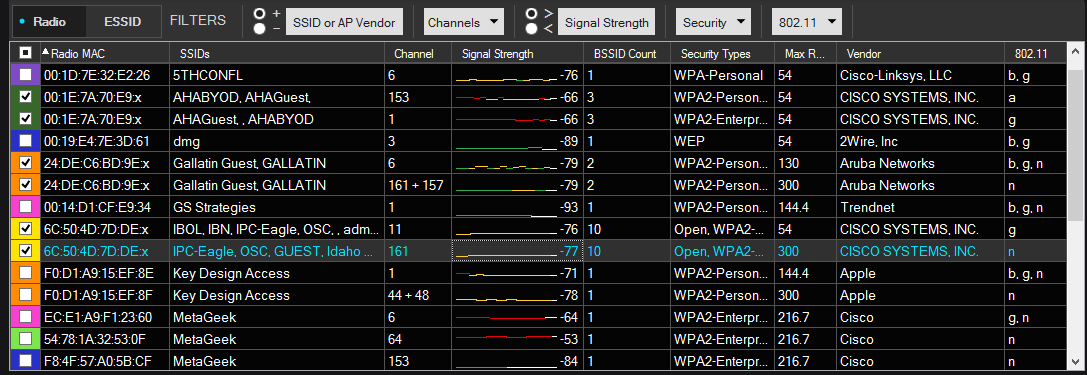

Radio Grouping
A Radio refers to a group of virtual SSID's on the same access point, such as "MetaGeek-Developers" and "MetaGeek-Operations".
Each Line in the Radio MAC column represents a group of SSID's on the same access point. Since each virtual SSID requires a unique MAC address, the x at the end of the MAC address for the radio indicates the nibble (single character) of the MAC that is incremented, to differentiate them.
Note: 2.4 and 5 GHz radios are selected in pairs. If a 2.4 GHz radio is selected, the matching 5 GHz radio will automatically be selected (and vice versa).
When Group by Radio is selected, the network graphs in the Density view are labeled with MAC addresses.
Networks Table Filters
The Networks Table filters allow you to exclude or include SSIDs that meet your filter criteria. You can filter by SSID, vendor, channels, network type, and security. This can be very useful if you are in an area with dozens of AP’s and you only want to view certain networks, for example, networks centered on channel 6. The filters can be stacked to meet a variety of criteria.
The SSID or Vendor filter begins with a “+” or “-” option. This will determine whether the filter includes or excludes the following text entered. For example, if you do not want to see any wireless networks named “MetaGeek”, select the - radio button and enter “MetaGeek” in the SSID or Vendor field. Press enter to apply the filter. Chanalyzer will then show every network that doesn’t have “MetaGeek” in the SSID or hardware field.

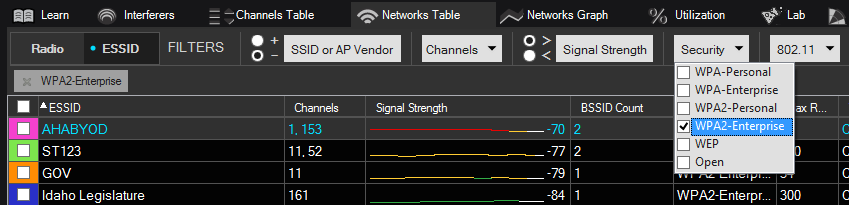

To filter by channels, click the arrow on the drop-down menu which will allow you to choose between 2.4 GHz and 5 GHz channels. 2.4 GHz channels range from 1-14 and 5 GHz channels from 36-165. “-” will filter the channels from a to b. For example, typing (1-6) will show channels 1 through 6. Using a “,” will allow you to enter multiple single channels to view. Typing (1, 4, 6, 9) will show only those channels. You can also use a combination of the two operators as follows: (2-5, 7-10).
The remaining filter options will show either AdHoc or Infrastructure networks, or exclude certain security settings of SSIDs.
To remove filters, click the x next to the applied filter.
Networks Graph
Click the Networks Graph to show signal strength over time, drawing the rows selected in the Networks Table. Drops in signal strength indicate poor signal coverage and can be referenced against the Waterfall and Density views to determine if interference is to blame.
Note: this data comes from the wireless network card and not the Wi-Spy.

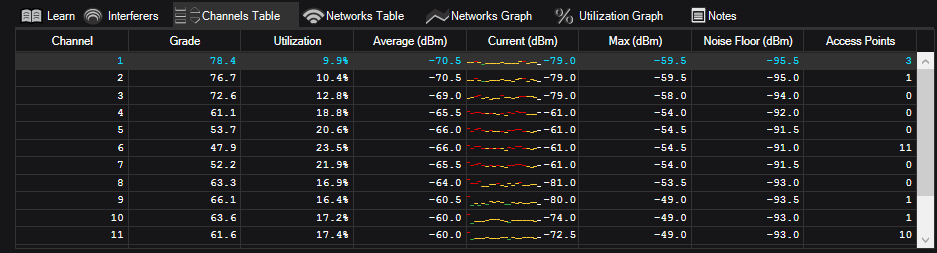

Channels Table
Channel - Defines the channel number.
Grade – This calculation uses the entire 20 Mhz width of a Wi-Fi channel. Higher power levels near the center of the channel will affect the grade more negatively. A high grade of 90 or above can be interpreted as an “A” while 80 or above is a “B.” Anything below 70 is not recommended for Wi-Fi deployment.
Utilization – Utilization measures the percentage of time that act a signal was active at or above the Utilization Threshold (configurable in the Utilization Graph tab). The measurement is an average utilization over the entire 20 MHz 802.11 channel, also averaged over the timespan that is selected in the Waterfall Navigation view.
Average - For each channel range (for example, Wi-Fi Channel 1, 2401 - 2423 MHz), Chanalyzer calculates the average power within that channel frequency range.
Current – The current represents an average of the most recent amplitude readings within the channel range.
Max - This is an average of the highest amplitude points within the Wi-Fi channel frequency range.
Noise Floor - Shows the noise floor for the 20 MHz channel.
Access Points – Amount of detected Access Points on the channel, as detected by a Wi-Fi adapter that is connected to Chanalyzer.
Device Finder
This view shows a signal strength over time graph similar to the Networks Graph, but also shows the signal strength of a selected frequency range. Device Finder will enable you to actively seek out transmitters so you can know exactly what is happening in your networks.

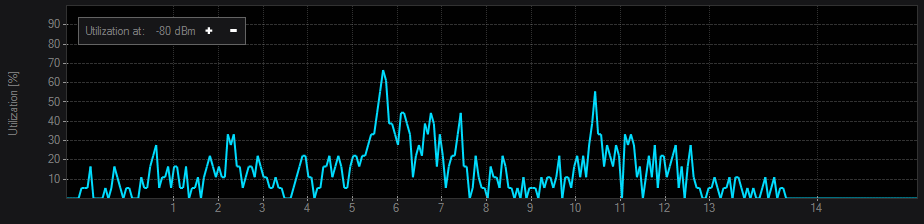

Utilization Tab
The Utilization Tab shows you the exact utilization (how often the frequency is being used or utilized) at the defined threshold on a frequency-by-frequency basis, as represented in the graph. You can change the measurement threshold in this view with the + and - buttons in the upper-left. The height of the graph shows the percentage of utilization for that specific frequency.
Details Pane (CleanAir AP Mode)
Device Interferers Table

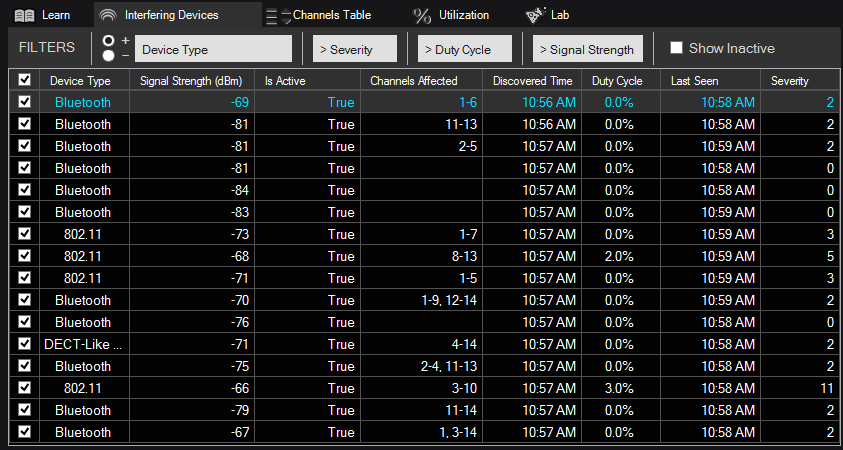

When connected to a CleanAir AP, Chanalyzer will begin populating the Interfering Devices table with any non-Wi-Fi transmitters that are detected. The table is fully filterable by Device Type, Severity, Duty Cycle, and Signal Strength.
Clicking the checkbox next to an interferer will display a visual indicator in the density view that spans the channels where the device is active. The spanning area will be filled in depending on the severity of the interference-- The higher the severity, the more opaque the overlay will be (and the more impact your users are likely to experience).
Report Builder Accessory for Chanalyzer
With the Report Builder accessory for Chanalyzer, users can highlight and visually explain how bad interference was when it occurred in an easy, professional manner.
Recognizing Interferers (Wi-Spy Mode)

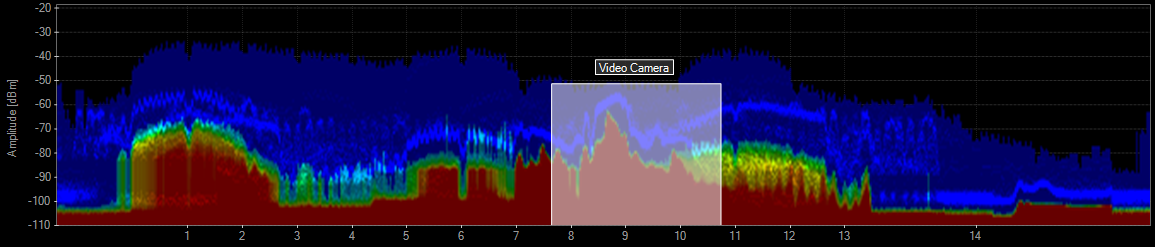

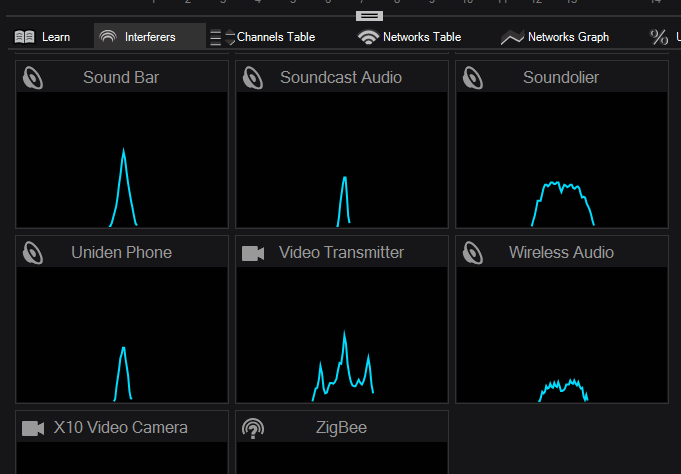

You can recognize interferers using the patterns they make in the Density View. To assist with with recognizing interferers, there is a library of interferer identifier patterns which can be found under the Interferers tab.
Using the Identifier Pattern for Finding & Identifying Interferers
Click on the classifier in the Interferers tab and then hover the mouse over the Density View. Turn off the silhouette by clicking the box again in the Interferers tab.

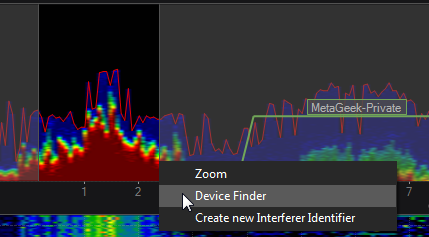

Line up an interferer signature with the shape in the Density View, then click to jump to Device Finder mode.
Create a New Interferer Identifier
1. Highlight the frequency range of the interference for which you want to create an identifier pattern.
2. Adjust the time frame to find shape that represents the device the most.
3. Click Create new Interferer Identifier in the contextual menu.
4. Assign a Category to the identifier and give it a name.
Deleting an Identifier
To permanently remove a identifier from the Interferers tab, click the garbage can icon in the top right of the identifier.
Lab Accessory for Chanalyzer
The Lab Accessory for Chanalyzer gives you fine-grained control over Wi-Spy, so you can tune it to your specific needs.
