Use the table below to compare specs of MetaGeek Wi-Spy models.
Wi-Spy Specifications
|
Wi-Spy Lucid |
WiPry Clarity |
Wi-Spy DBx |
|
| Frequency Range* | 2200-7250 MHz | 2200-7250 MHz |
2400-2495 MHz, 5150-5850 MHz |
| Amplitude Range | -95 dBm to -5 dBm | -95 dBm to -5 dBm | -100 dBm to -6.5 dBm |
| Amplitude Resolution | 0.5 dBm | 0.5 dBm | 0.5 dBm |
| Frequency Resolution* | 25.4 kHz to 405.5 kHz | 25.4 kHz to 405.5 kHz | (2.4 GHz) 25.4 kHz to 405.5 kHz (5 GHz) 23.4 kHz to 375.3 kHz |
| Resolution Bandwidth* | 58 kHz to 812.5 kHz | 58 kHz to 812.5 kHz | (2.4 GHz) 58 to 812.5 kHz (5 GHz) 53.6 to 750 kHz |
| Default Frequency Resolution |
(2.4 GHz) 390 kHz (5 GHz) 1.396 MHz (6 GHz) 1.786 MHz |
(2.4 GHz) 390 kHz (5 GHz) 1.396 MHz (6 GHz) 1.786 MHz |
(2.4 GHz) 333 kHz (5 GHz) 1497 kHz |
| Sweep Time* |
(2.4 GHz) 200ms (5 GHz) 400ms (6 GHz) 600ms |
(2.4 GHz) 260ms (5 GHz) 1000ms (6 GHz) 1520ms |
(2.4 GHz) 507ms (low 5 GHz) 1242ms (mid 5 GHz) 1587ms (high 5 GHz) 641ms |
| Antenna | RP-SMA | RP-SMA | RP-SMA |
| Compatible Software |
Chanalyzer Lite Chanalyzer 5 MetaGeek App |
Chanalyzer Lite Chanalyzer 5 MetaGeek App |
Chanalyzer 5 inSSIDer Office inSSIDer with MetaGeek Plus MetaGeek App |
| Length | 75mm (including RP-SMA connector) | 75mm (including RP-SMA connector) | 75mm (including RP-SMA connector) |
| Width | 61mm | 61mm | 34mm |
| Height | 11mm | 11mm | 13mm |

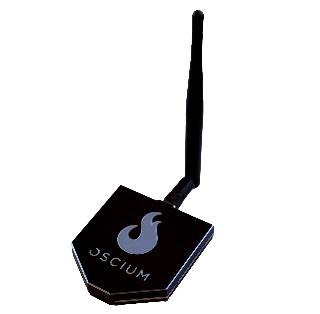

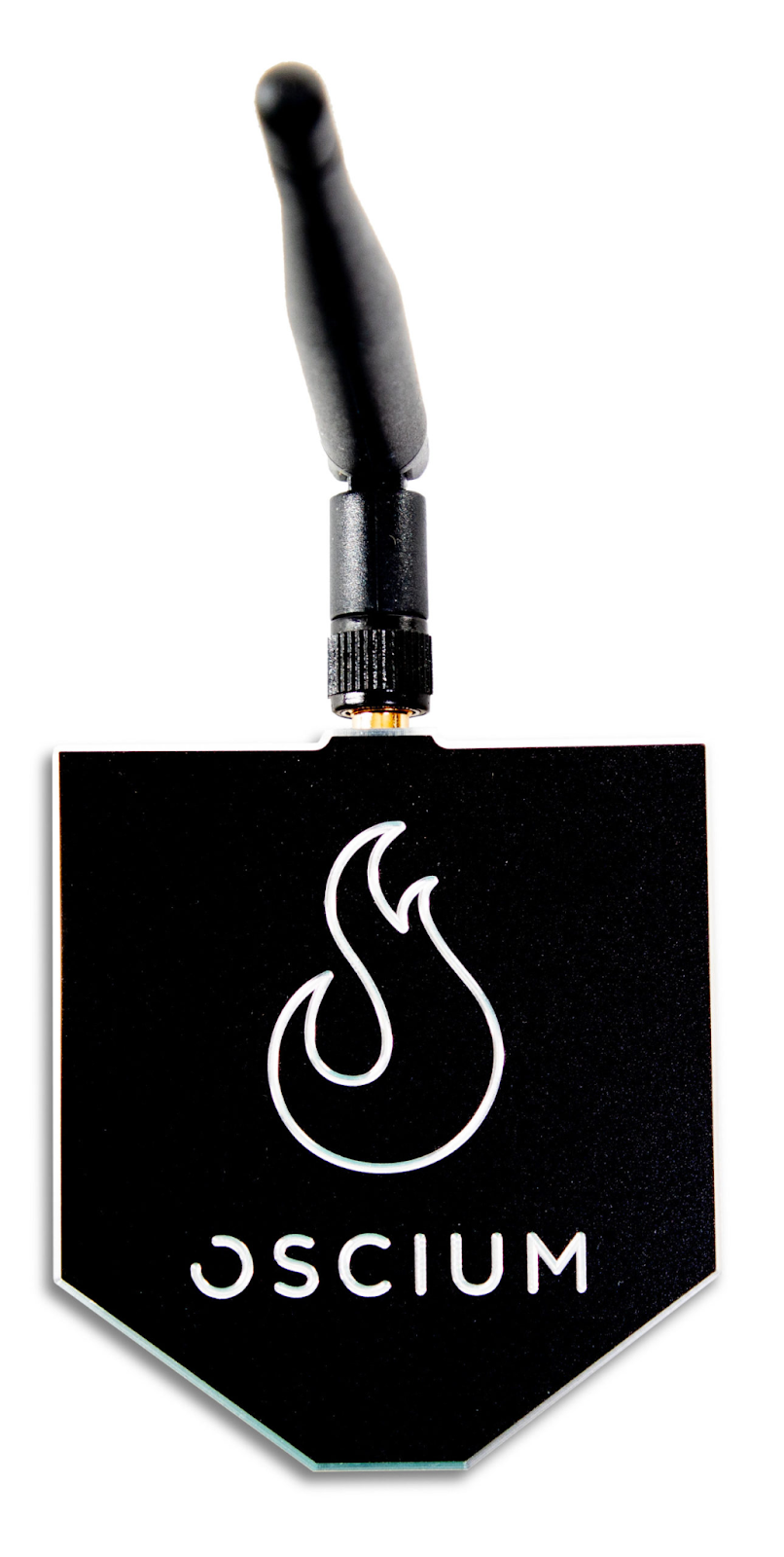

| Additional Accessories | Oscium Directional Interference Finder | Oscium Directional Interference Finder | Alfa APA-M25 or MetaGeek Device Finder directional antenna |
Notes
* The Device Settings feature in Chanalyzer 5 adds the ability to change the minimum and max frequencies and adjust frequency resolution and filter bandwidth. Changing sweep parameters will affect the sweep time.
