Use the table below to compare specs of packet capture adapters that work with MetaGeek App:
Specifications

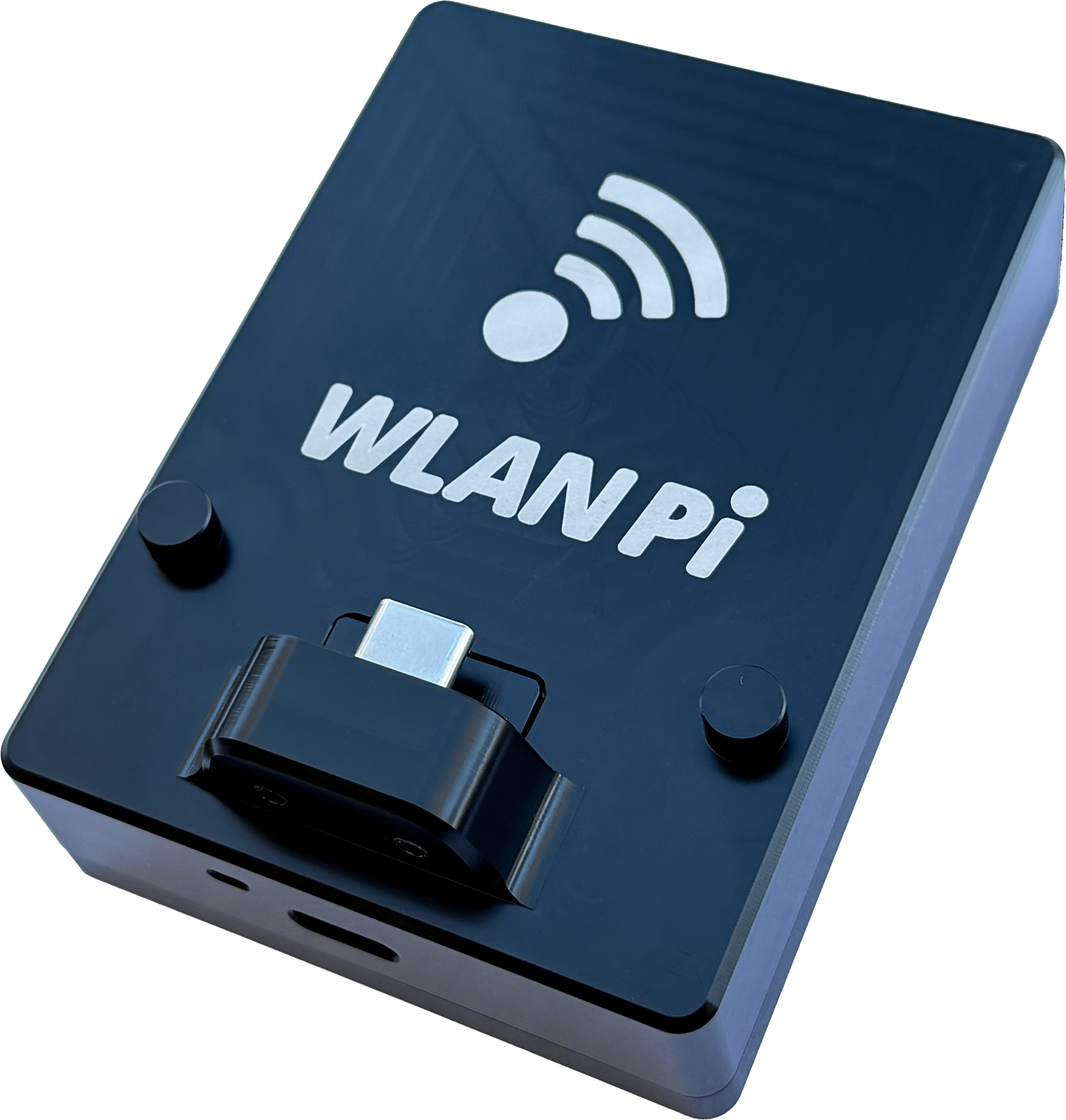

WLAN Pi Go | ||
| IEEE Standards | 802.11a/b/g/n/ac/ax/be | 802.11a/b/g/n/ac |
| Frequency Range | 2.4 - 2.485 GHz 5.15 - 5.895 GHz subject to LAR (Location Aware Regulatory 5.925 - 7.125 GHz subject to LAR | 2.4 - 2.4835 GHz (subject to local regulations)
|
| Interfaces | USB Type-C for USB OTG USB Type-C Host dock for Accessories (Wi-Spy Lucid spectrum analyzer) MagSafe compatible for iOS | USB 3.0 Type A |
| Host compatibility | Mac/Linux/Windows/iOS | Windows 7/8/8.1/10/11 macOS 10.7 ~ 10.15 Linux : Kernel 3.6.10 ~ 5.1.0 |
| Antenna | 2x2 | 3x3 (3T3R MIMO) |
| Dimensions | 33 (L) x 61 (W) x 84 (H) mm | 87.1 (L) x 27 (W) x 18 (H) mm |
| Weight | 156g | 23g |
| Environment | Temperature: 0° to 50°C Humidity: 50% | Temperature: 0 to 40°C Humidity: 0 to 90% |
| Compatible Software | MetaGeek App WLAN Pi App on iOS / Android Wireshark | MetaGeek App |
| Chipset | Intel WCSBE200 | Realtek RTL8814AU |
| Additional Accessories | Wi-Spy Lucid for spectrum analysis | NA |
